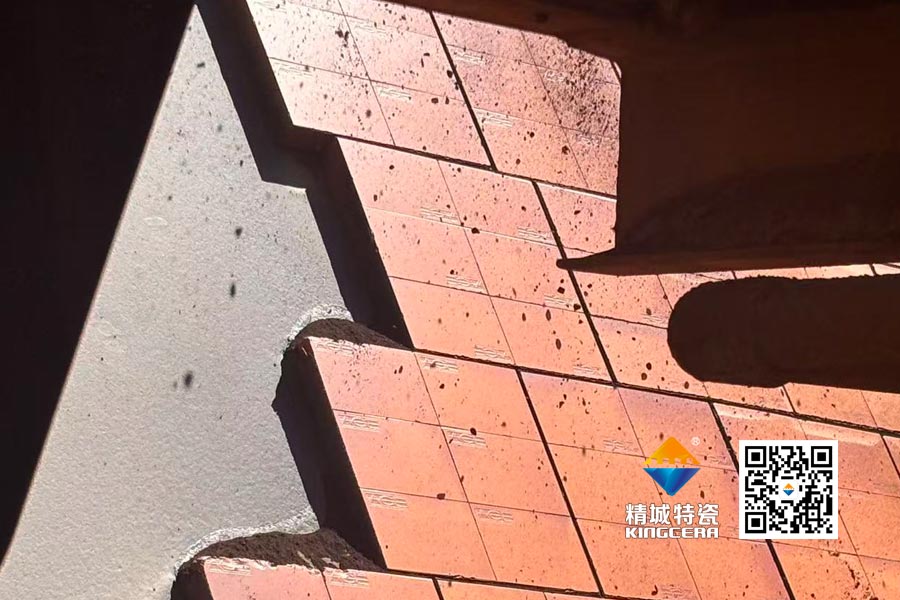

ZTA Ceramic Liners for Mine Bucket Wheel Stackers: A Reliable, High-Efficiency, Wear-and-Impact Resistant Solution

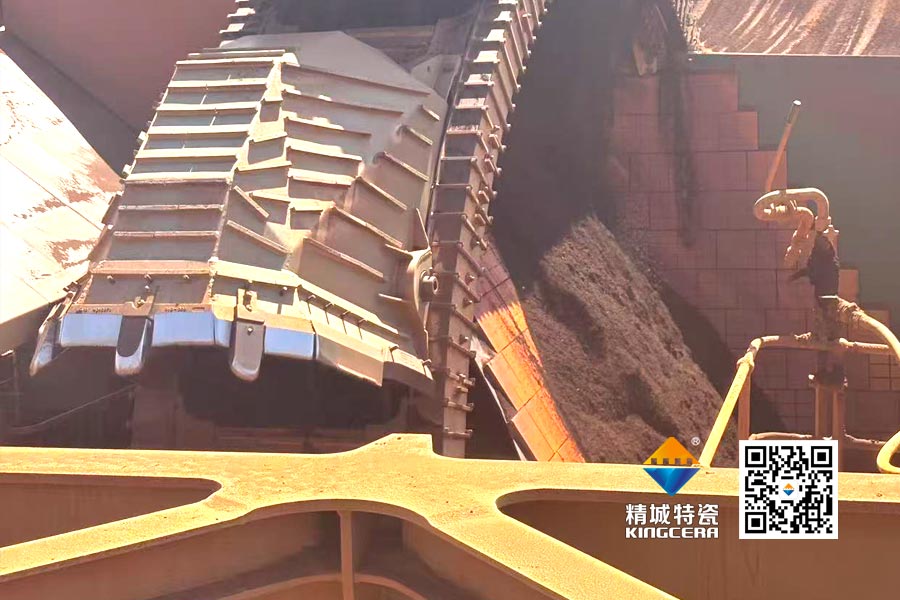

Mine bucket wheel stackers are key equipment in bulk material handling systems. They are widely used in industries like coal, mining, and ports for stacking, reclaiming, and blending materials. They significantly improve the automation and continuity of material handling operations. However, these machines work under intense conditions with high wear. The performance of their key component – the liner – directly affects the equipment's lifespan and efficiency. ZTA ceramic liners have become a reliable solution to this challenge.




In mining environments, stacker liners face multiple harsh conditions:



Severe Wear: Stackers constantly handle hard and abrasive materials like coal and ore. During high-speed operation, the continuous friction between these materials and the liner surface causes rapid wear.



Strong Impact: Large lumps of material falling from height or hitting parts create significant impact forces. This can easily cause liners to crack or deform.



Corrosion & Oxidation: In damp, acidic, alkaline, or high-temperature environments, ordinary metal materials can corrode or oxidize. This further reduces the liner's mechanical strength and service life.



These factors combined mean traditional metal liners often have a short lifespan and need frequent replacement. This not only increases maintenance costs but also hurts the stability and productivity of the entire operation.




The wear on these liners is mainly a combination of high-stress abrasive wear and impact wear. As materials move, they slide or roll against the liner surface. Hard particles within them (like SiO₂ or Al₂O₃) act like tiny cutting tools, gradually removing material and causing fatigue. At the same time, impacts from large lumps of material can create micro-cracks beneath the surface. These cracks spread, speeding up the failure of the liner.




To tackle these challenges, ZTA ceramic liners are an ideal choice for protecting bucket wheel stackers from wear. This material uses a mechanism called zirconia phase transformation toughening. It maintains high hardness and wear resistance while significantly improving impact resistance.



ZTA ceramic liners offer these core advantages:



Exceptional Wear Resistance: ZTA ceramic has a hardness over HRA 90. It can be dozens of times more wear-resistant than manganese steel liners, greatly extending the stacker's service life in harsh, abrasive conditions.



Excellent Impact Toughness: Thanks to the toughening effect of zirconia, ZTA ceramic can effectively absorb impact energy. This helps prevent it from chipping or breaking under the force of falling materials.



Strong Chemical Stability: ZTA ceramic is highly resistant to acids, alkalis, and solvents. This makes it suitable for complex environments, including damp, hot, and corrosive conditions.



Furthermore, ZTA ceramic liners are structurally versatile. They can be installed using bolts or adhesive, making the process convenient. This greatly reduces how often maintenance is needed and lowers overall operating costs. It's important to note that in heavy-wear, high-impact mining applications, using ZTA liners thicker than 30mm is recommended to ensure their stability and durability.
