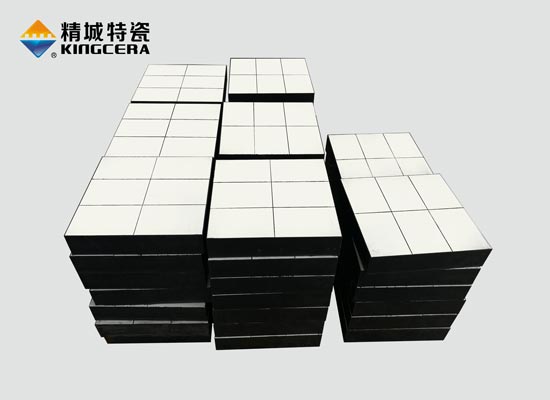

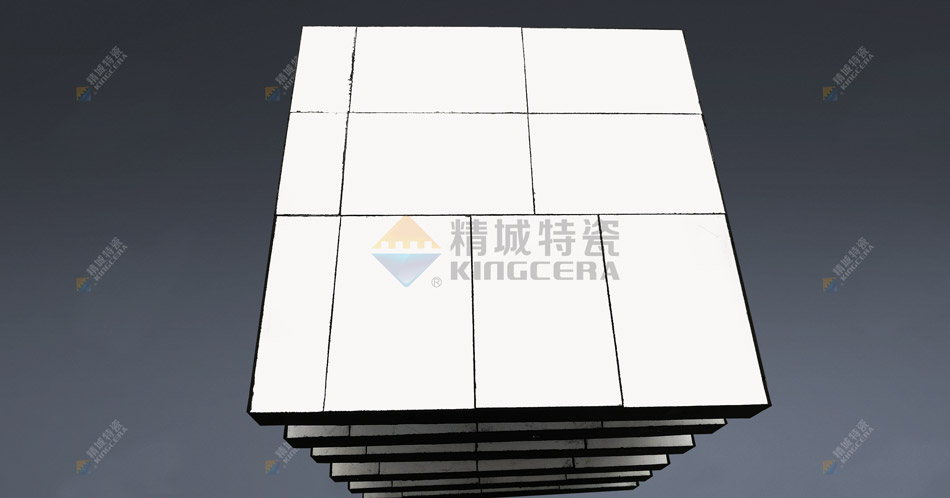

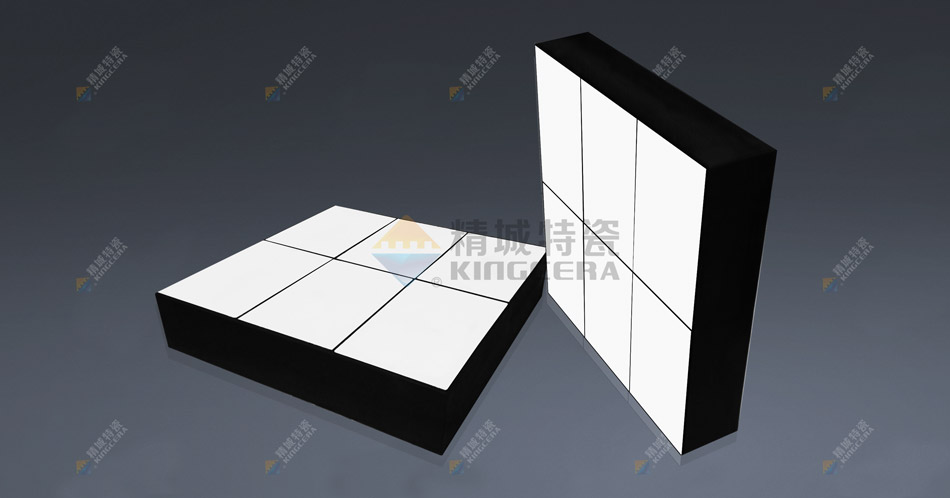

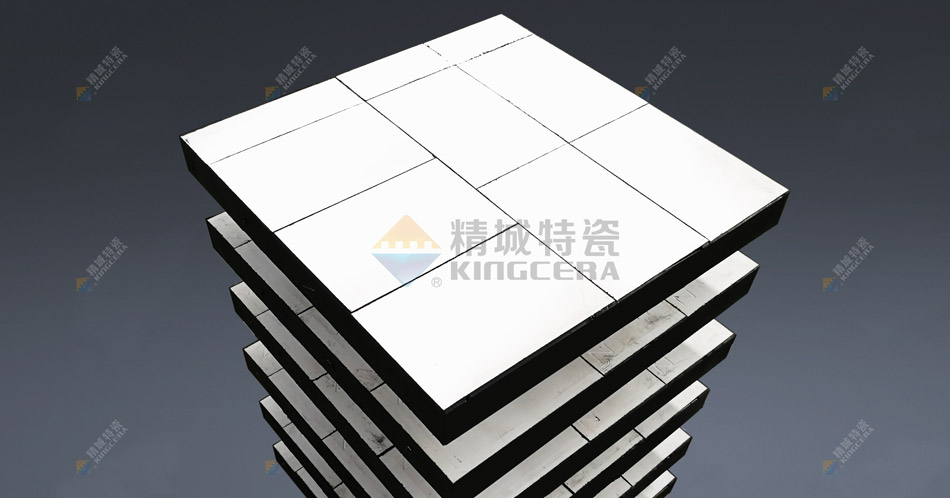

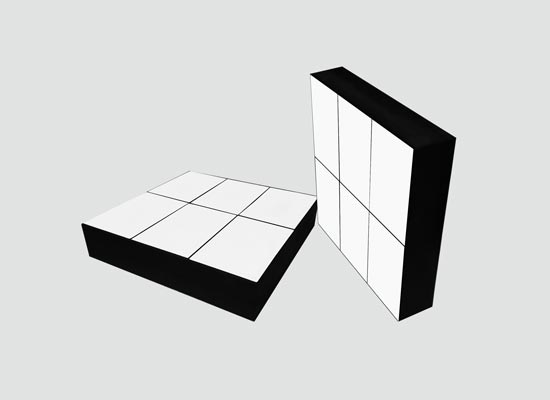

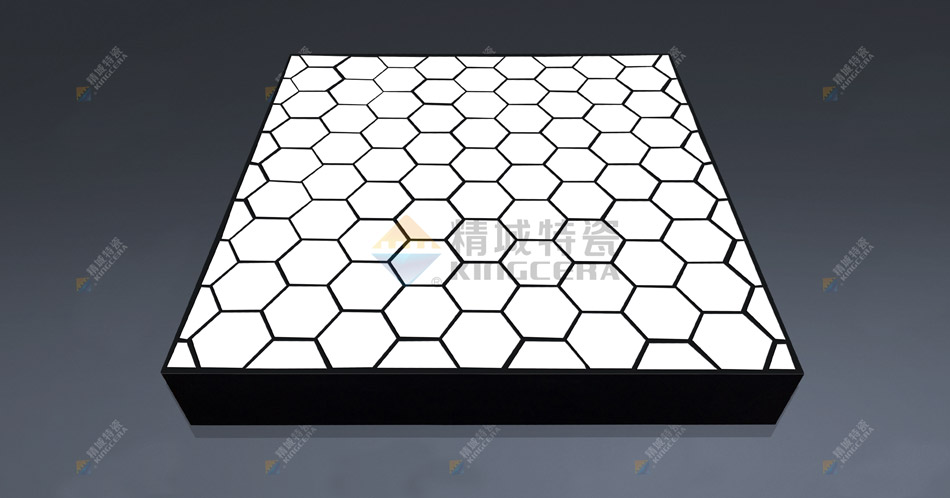

Zirconia toughened alumina(ZTA) Ceramic wear liner

KINGCERA Zirconia Toughened Alumina (ZTA) introduces ZrO₂, Cr₂O₃ and TiO₂ with similar lattices to Al₂O₃ in the ceramic formula, resulting in higher strength and toughness than alumina ceramics. ZTA ceramic wear liner is a new type of super wear-resistant and impact-resistant liner. This is composite product made of zirconium and aluminum vulcanized to a steel plate with rubber.

Brand：KINGCERA

Origin：Changsha China

Categories：Ceramic wear liners

FEEDBACK

PRODUCT DETAILS

SPECIFICATION

Zirconia Toughened Alumina(ZTA) Structure and Properties

KINGCERA Zirconia Toughened Alumina(ZTA) composite ceramic lining board introduces ZrO₂, Cr₂O₃ and TiO₂ with similar lattices to Al₂O₃ in the ceramic formula, and at the same time adds ZnO whiskers imported from Japan's Toshiba Company, which forms a solid solution with Al₂O₃ during the sintering process It can refine grains, promote sintering and improve fracture toughness. The fracture toughness KIC of zirconia ceramics is greater than or equal to 7.5MPa•m1/2, which greatly improves the toughness of ceramics.

ZTA ceramic wear liner uses advanced vulcanization technology to vulcanize ZTA ceramic made of alumina and zirconia in rubber, and can also vulcanize ceramic rubber directly on steel plate. The firmness ensures the reliability of wear resistance and impact resistance.

Product Applications

ZTA Ceramic wear Liner (NMC-ZTA) is used as an anti-wear lining on equipment with large conveying volume, large material and high impact under normal temperature environment.

The technical specifications for the ZTA ceramic

The technical specifications for the ZTA ceramic
Specifications	Technical arrange
Density	≥4.15 g/cm³
Rockwell Hardness(HRA)	≥90
Vicker Hardness (Hv10)	≥1400
Bending Strength	450 Mpa
Compressive strength	2500 Mpa
Wear ability	≤0.01 cm³
Fracture toughness (KIC)	≥5.5 Mpa/m²
Temperature resistant	≤ 750 ℃
Acid and alkali Ability	PH 3~12

The technical specifications for the rubber

The technical specifications for the rubber
Items	Data
Rubber material	Nature
Tensile strength(MPa)	≥15
Elongation break(%)	≥400
DIN Abrasion(mm3)	120
Shore hardness	55-65
Permanent deform(%)	≤24
Bonding strength between ceramic and rubber	≥25N/mm
