The wear resistant ceramic bonding steel plates

The Wear-resistant ceramic bonding steel plate is to directly bond the toughened wear-resistant ceramic with a high-strength organic adhesive or an inorganic adhesive with a maximum temperature of 350 ℃ directly into the steel plate. The steel plate is equipped with countersunk bolts to connect the equipment. And there is an anti-impact &wear layer, which can well solve the wear problem of equipment during the transportation of bulk materials. It is suitable for the material conveying equipment in room temperature environment, which can also withstand the impact of bulk materials.



1. Wear resistance: High hardness with a great wear ability.

2. Impact resistance: The toughened ceramic ensures that the ceramic is not easily broken and can bear the impact of large materials;

3. High temperature resistance: It can be operated at 0℃-250℃ for a long time with a special installation method such as welding installation.

4. Convenient installation and replacement: It is provided with a whole liner, which is convenient for replacement and installation and reduces after-sales service;

5. Reduce maintenance: Excellent wear resistant ability greatly reduces the frequency of maintenance, saving costs and labor.



This kind of wear-resistant ceramic bonding steel liner is often used as a wear-resistant lining for material conveying equipment in room and high temperature environments, and can withstand the high impact of large materials with a special ceramic material.


Specifications	Technical arrange
Density	3.7~6 g/cm³
Rockwell Hardness(HRA)	≥85
Vicker Hardness (Hv10)	≥1100
Bending Strength	300~800 Mpa
Compressive strength	1200~3000 Mpa
Wear ability	≤0.03 cm³
Fracture toughness (KIC)	≥3.2 Mpa/m²
Temperature resistant	≤ 750 ℃
Acid and alkali Ability	PH 3~12

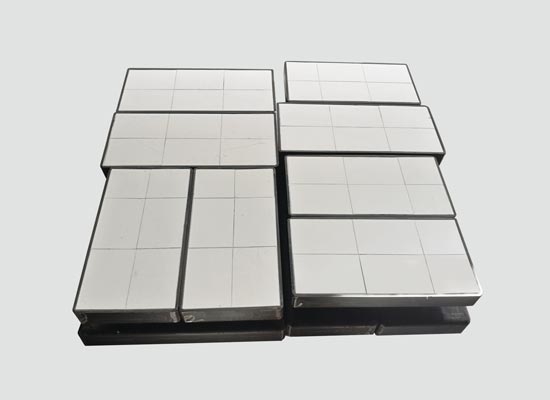

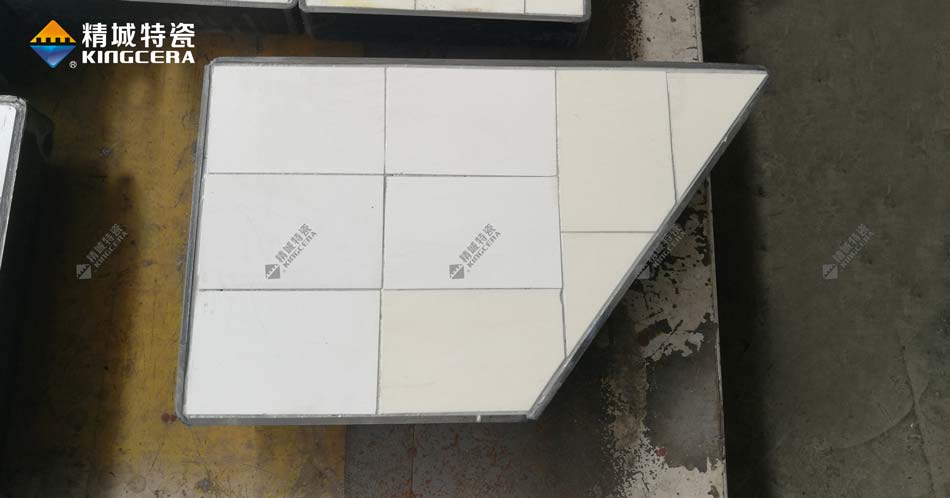

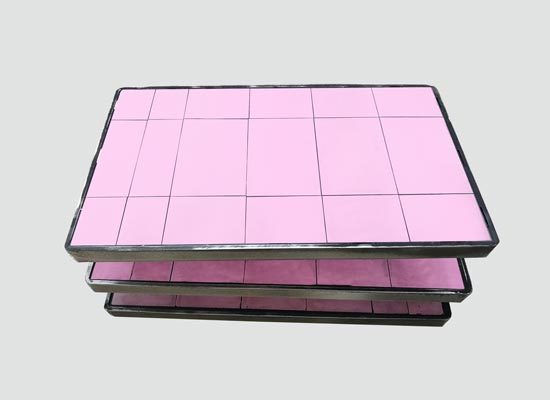

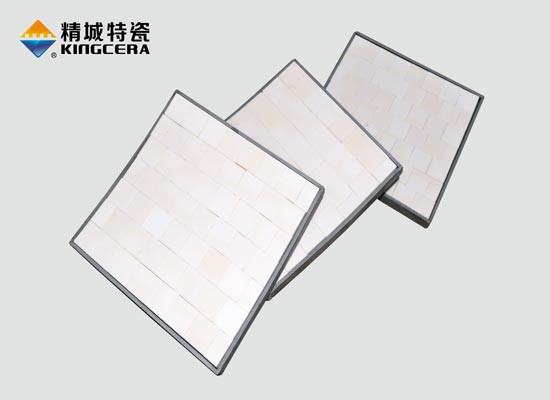

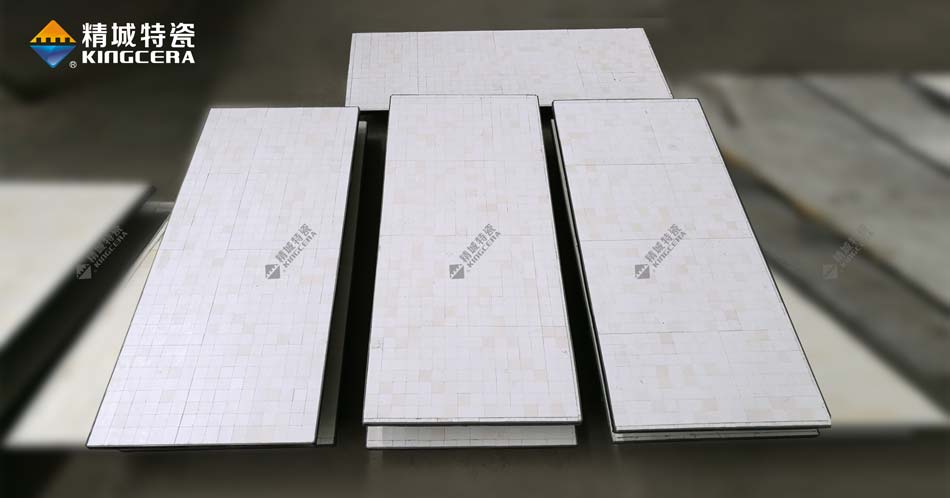

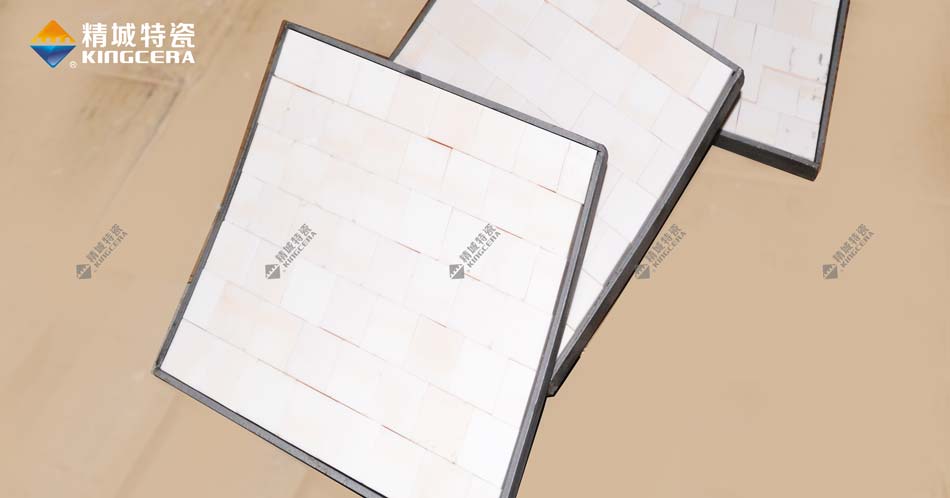

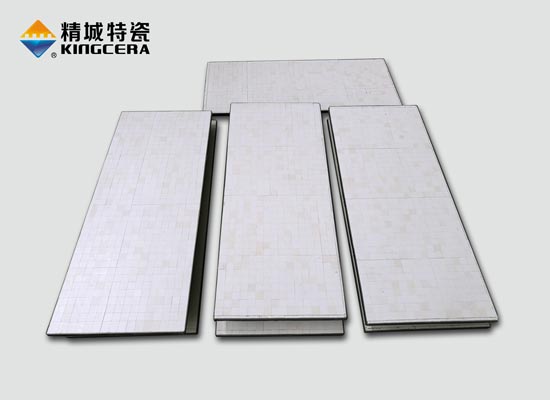

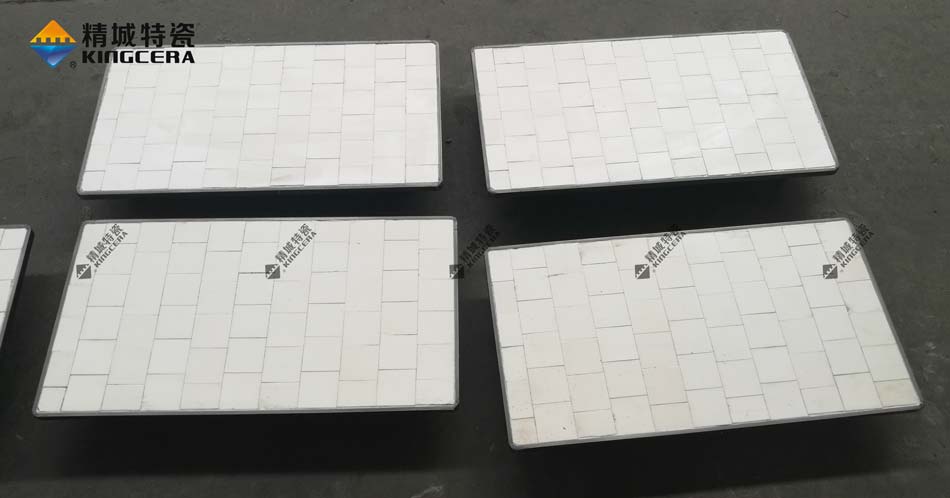

Product Exhibition
