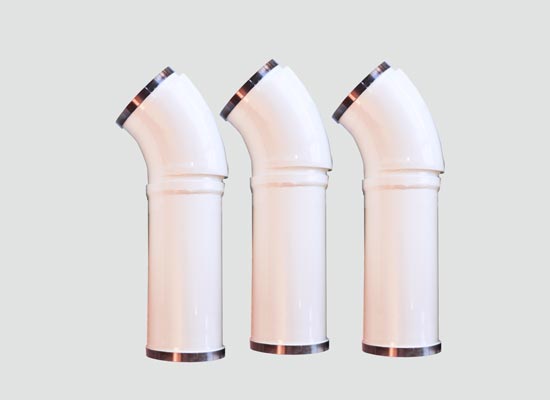

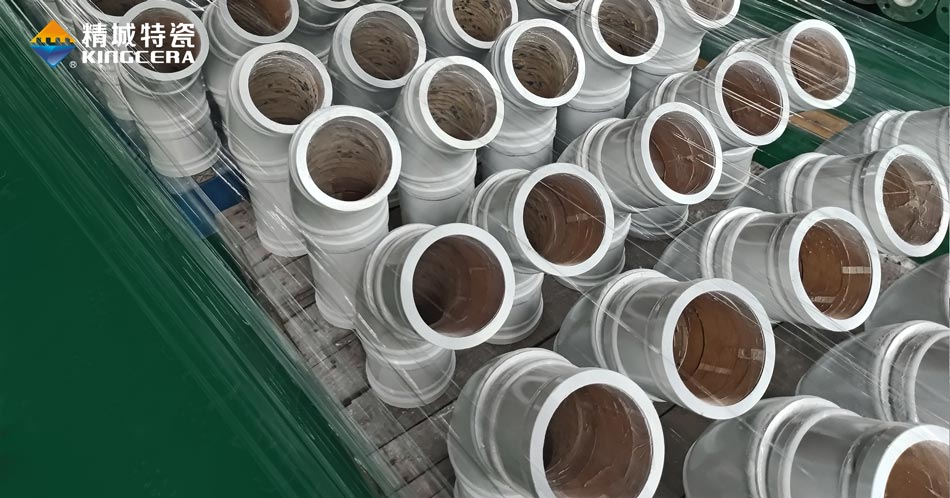

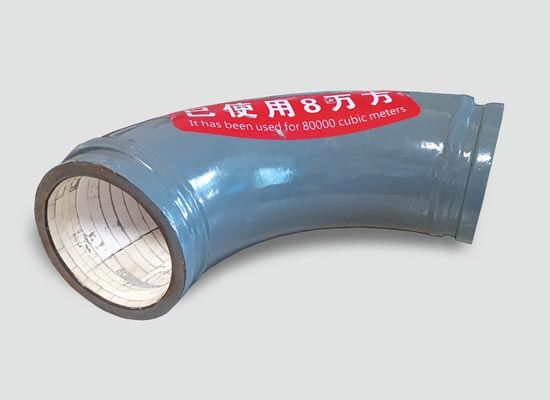

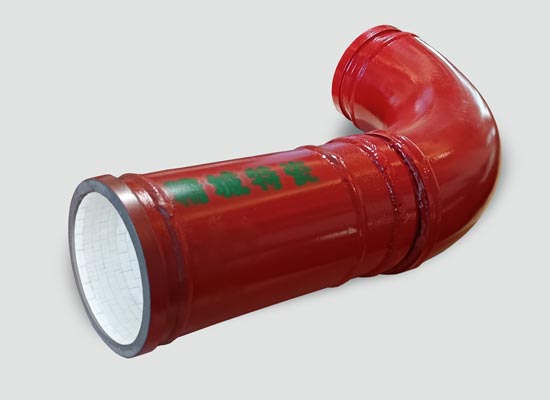

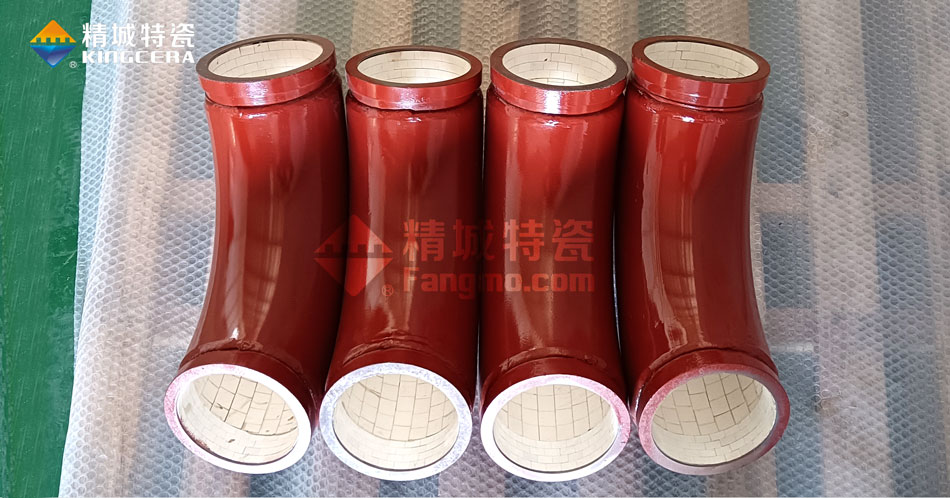

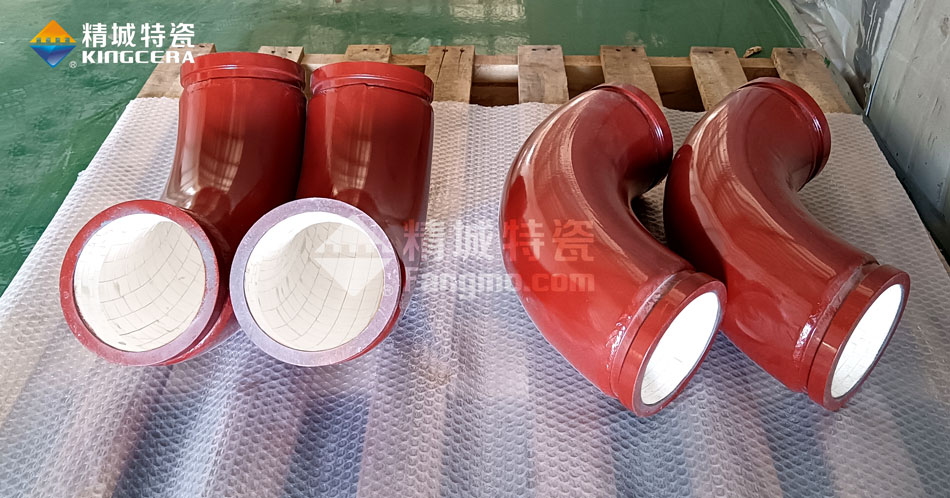

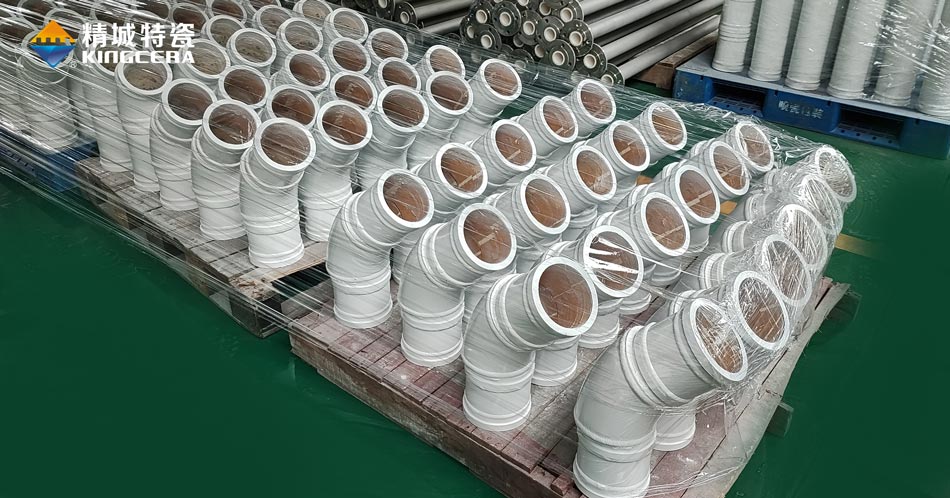

ARZ Reinforced Zirconia Ceramic Lined Pump Truck Elbow

Brand：KINGCERA

Origin：Changsha China

Categories：Concrete pump spare parts

FEEDBACK

PRODUCT DETAILS

SPECIFICATION

To address the extreme wear challenges posed by high-impact and large-particle materials during concrete pumping, Kingcera, in collaboration with Tsinghua University and other material research institutions, has successfully developed ARZ reinforced zirconia ceramics specifically designed for heavy-duty conveying conditions such as pump truck elbows. While maintaining extremely high hardness, this material significantly improves fracture toughness, achieving a perfect balance between “wear resistance” and “impact resistance.”

Core Physical and Mechanical Performance Indicators of Kingcera ARZ Ceramics:

Material Designation	ARZ
Name	Reinforced Zirconia Ceramic
Bulk Density (g/cm³)	≥5.4
Rockwell Hardness HRA	≥88
Vickers Hardness Hv10	≥1200
Flexural Strength MPa	800
Compressive Strength MPa	3000
Wear Volume (cm³)	≤0.008
Fracture Toughness KIC (MPa·m¹/²)	≥7.0

Advantages of Core Indicators:

Hardness ≥ HRA88 / Hv10 ≥ 1200: Far exceeds that of traditional manganese steel (HRA ≈ 60–70) and high-chromium cast iron (HRA ≈ 75–80), effectively resisting sand and gravel erosion.

Fracture Toughness ≥ 7.0 MPa•m¹/²: 2 to 3 times that of ordinary alumina ceramics, capable of withstanding transient impact loads during pumping without easily cracking or spalling.

Compressive Strength up to 3000 MPa: Fully satisfies the structural safety requirements of pump truck elbows under high-pressure pumping conditions.

Wear Volume ≤ 0.008 cm³: Exhibits excellent performance in standard friction tests, with an actual service life that can reach more than 10 times that of ordinary elbows.

Why choose ARZ instead of ordinary alumina ceramics for wear-resistant pump truck elbows?

Although ordinary alumina ceramics are hard, they are brittle and prone to microcrack propagation in high-frequency impact environments like pump truck elbows, leading to premature failure. In contrast, ARZ significantly enhances material toughness by introducing zirconia toughening mechanisms (phase transformation toughening and microcrack toughening), enabling it to achieve an optimal balance between “high hardness and high toughness,” making it particularly suitable for the complex “abrasion and impact” conditions of concrete pumping.
