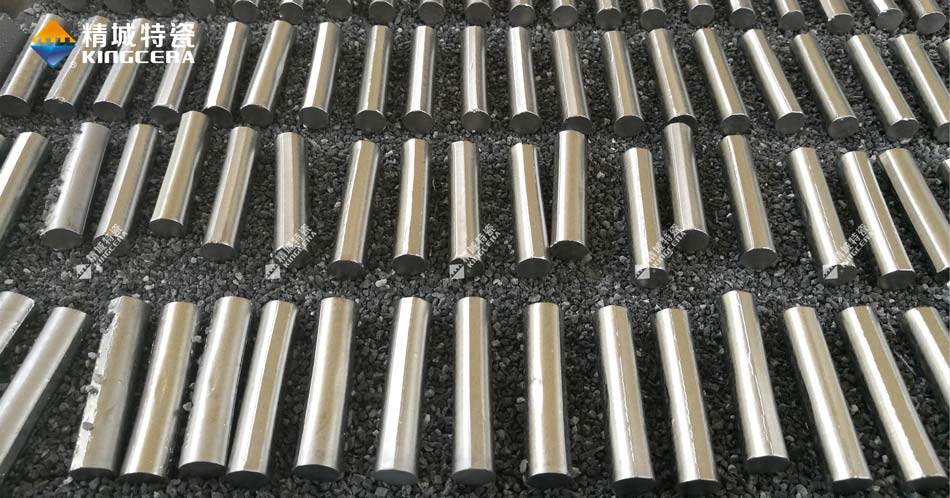

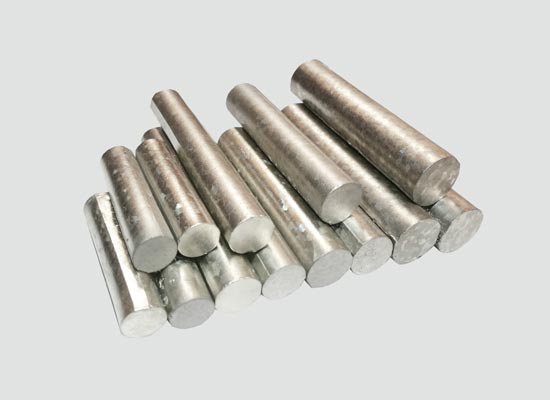

Titanium Carbide(TiC) Cermet Rod for Wear Resistance Pin in Crusher Hammer Head

Titanium Carbide(TiC) Cermet Rod for Crusher Hammer Head

Titanium Carbide Rod for Crusher Hammer Head

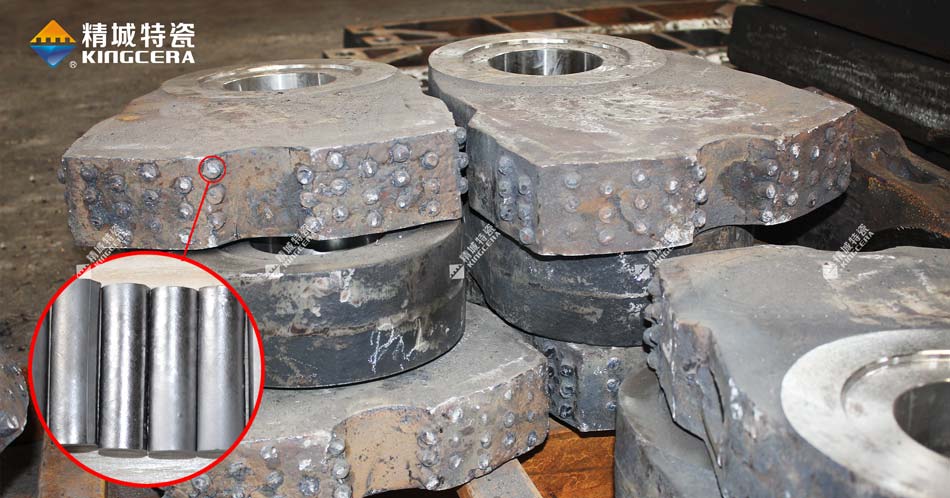

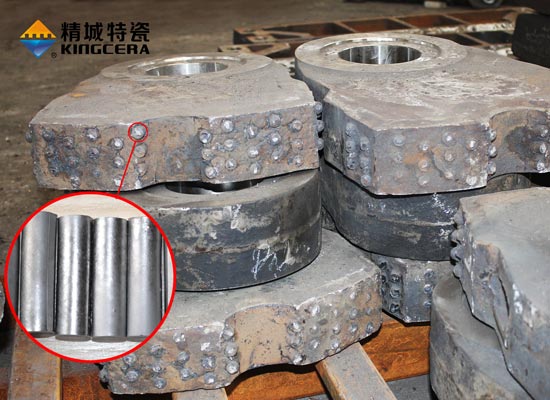

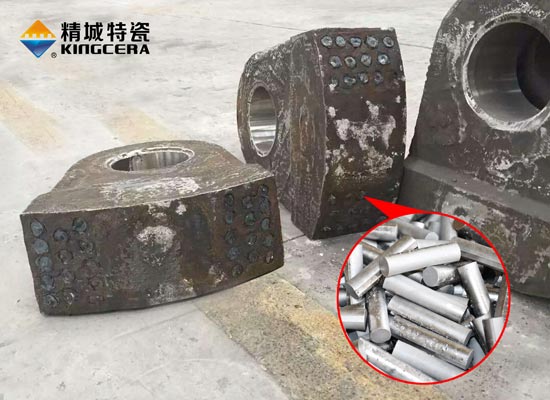

Titanium carbide-based steel-bonded carbide rod can be used in harsh working environments. Casting titanium carbide alloy rods in crusher hammers, plate hammers, jaws, concave surfaces, hoods, crushing rollers and other wearing parts, thereby increasing the service life of the equipment and correspondingly saving maintenance costs.

Brand：KINGCERA

Origin：Changsha China

Categories：Ceramic composites

FEEDBACK

PRODUCT DETAILS

SPECIFICATION

Titanium Carbide Rod Introduction

Hunan Kingcera Engineering Co., Ltd. combined production technology of powder metallurgy and wear resistant ceramic, Titanium carbide(TiC) cermet rod is an upgraded one in similar product market. Aiming to provide better and more reliable cermet composite solution for all kinds high manganese or low alloy wear parts ‘wear resistance performance in the field of mining，cement, steel making.

For K-TiC cermet inserts, common grade details as below
Grade	Composition Details	Application
TM52	Titanium carbide 48%, high manganese steel and others 52%	High abrasion resistance and high toughness, widely used in crushers’ wear part by casting
TM60	Titanium carbide 40%, high manganese steel and others 60%	Compared to TM52, higher toughness, but lower abrasion resistance, usually used in road header, shaft drilling machine;
GT35	Titanium carbide 35%, high manganese steel and others 65%	Ultra high toughness, usually for mold making

In current stage, Grade TM52 is the hot sale and widely used one in casting field.

Grade TM52 Technical data
Item	Value	Range	Testing Standard or Equipment
Density	g/cm³	6.0-6.2	ISO3369 OR GB/T3850
Hardness HRC	-	60-62	ISO3781 ORGB/T3849
Bending Strength	MPa	≥1600	ISO3327 OR GB/T3851
Impact	J/mm²	≥6.0	GB/T1817
Porosity	-	A02B00C00	ISO4505 OR GB/T3489
Size		As request

Hot sale size in cylinder shape: D12x50mm, D14x60mm，D14x40mm，D14x50mm，D16x80mm，D18x80mm, D20x90mm;

Tailored size: as request, could make;

Free Sample: as request.

Why Titanium carbide(TiC) cermet rod in Hunan Kingcera is an upgraded one in similar product market?

Item One：After ordinary dry press process, add cold isostatic pressing(CIP), which we used for wear resistant ceramic products almost 30years. After two step pressing, pre-sintering rods will get higher compactness, which will bring evenly shrinkage during sintering, then get compacted K-TiC cermet rods.

Item Two： for pre-sintering inserts, could use wire cutting process to make tailored shape & size

Item Three：Use vacuum sintering process. The surface of inserts appears own bright silver metal luster by visual testing, which means the inserts be fully sintered, all above mentioned technical performance will be guaranteed.

Item Four：self-design and produce ability in mold making, could make tailored inserts, right now, biggest rod size is D20x110mm

Item Five：all production processes are under control of ISO14001:2015.

Product Applications

Each batcApplication products: high manganese wear parts, hammer crusher, hammer head, plate hammer, movable jaw plate, tooth plate, cone crushing wall, rolling mortar wall, crushing cavity, fixed cone liner, movable cone liner, roller ring of roller machine, cone crushers, Metso HP series cone crusher

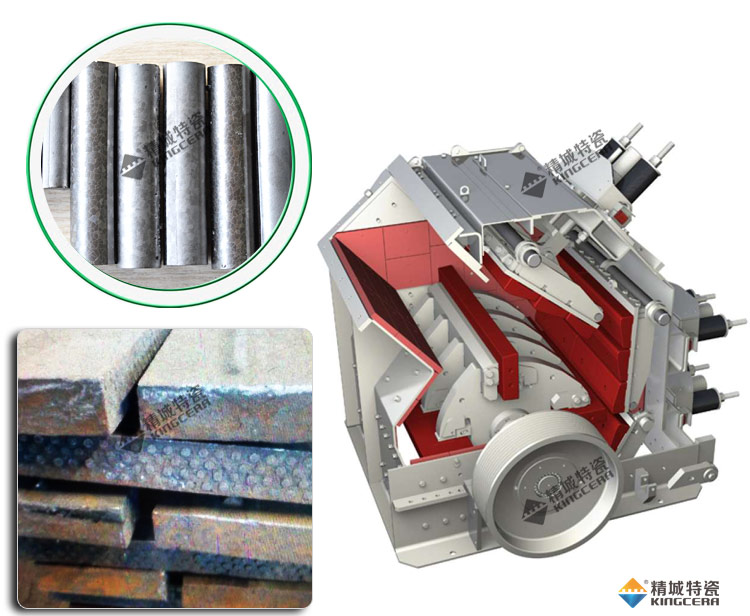

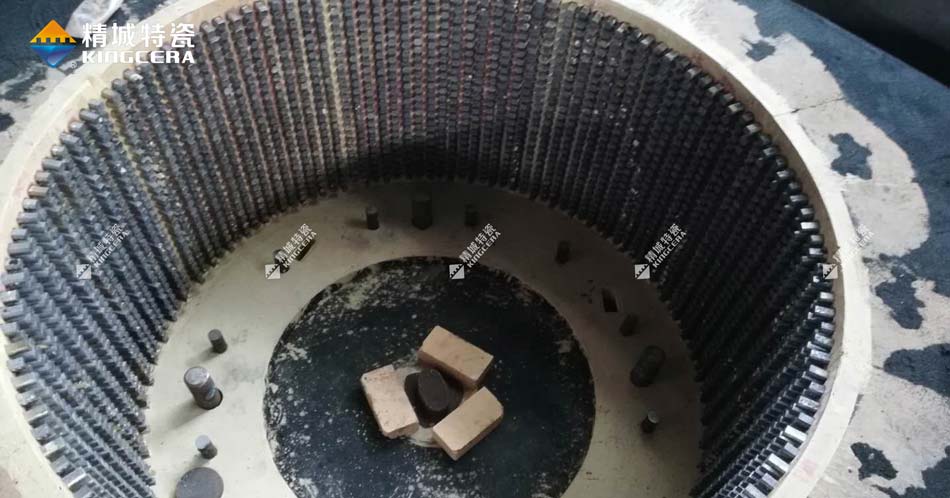

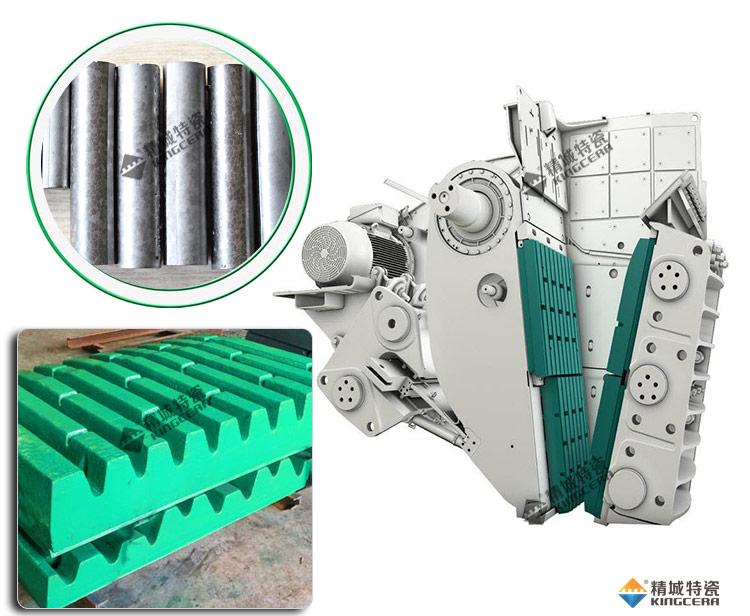

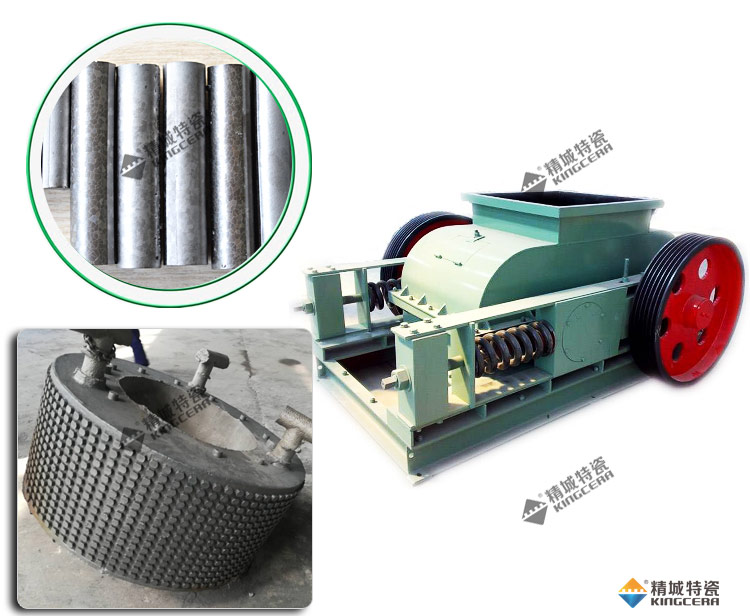

Applicable crushing equipment: jaw crusher, single-stage hammer crusher, ring hammer crusher, impact crusher, cone crusher, gyratory crusher, plate feeder, counter-roller;

Applied material: high manganese steel, manganese chromium alloy (Mn13, Mn13Cr2, Mn18, Mn18Cr2), low alloy steel

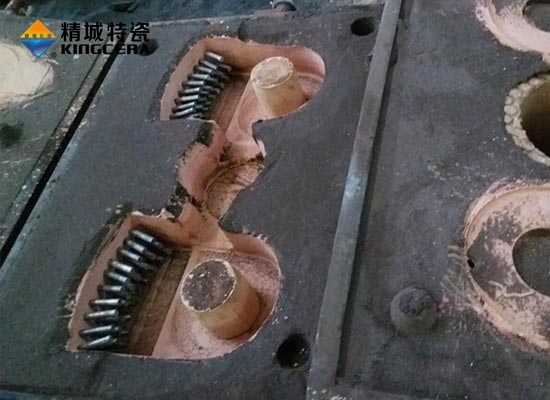

Application casting process: V method, lost foam, sand casting

Application materials: large ore, iron ore, gold ore, copper ore, river pebble, granite, basalt, iron ore, limestone, quartzite, diabase, etc.

Application range: ore crushing, limestone mines, sand and gravel yard, concrete mixing plant, dry mortar, power plant desulfurization, quartz sand, etc.

Application industries: ore mining industry, cement industry, building materials industry, etc.h will take hardness testing by professional equipment.
