The Impact resistant ceramic wear liner(NMC-KJ)

The Impact resistant ceramic wear liner(NMC-KJ)
The Impact resistant ceramic wear liner(NMC-KJ)
The Impact resistant ceramic wear liner(NMC-KJ)
The Impact resistant ceramic wear liner(NMC-KJ)

The Impact resistant ceramic wear liner is made by vulcanizing ceramics in rubber or directly vulcanizing ceramic and rubber on steel plates. It is used as an wear and impact resistance on equipment with large conveying volume, large material and large impact under normal temperature environment.

Brand:KINGCERA

Origin:Changsha China

Categories:Ceramic wear liners

Follows:

PRODUCT DETAILS

Product Structure

This product adopts the hot vulcanization process to vulcanize the ceramic in the rubber or directly vulcanize the ceramic and rubber on the steel plate. The steel plate is equipped with countersunk bolts, which increases the firmness between the liner and the equipment and ensures the reliability of wear resistance and impact resistance.


Product Applications

The Impact resistant ceramic wear liner (NMC-KJ) ,It is used as an wear and impact resistance on equipment with large conveying volume, large material, and large impact under normal temperature environment.


Technical Specifications

Technical Specifications
Specifications Technical arrange
Density 3.7~6 g/cm³
Rockwell Hardness(HRA) ≥85
Vicker Hardness (Hv10) ≥1100
Bending Strength 300~800 Mpa
Compressive strength 1200~3000 Mpa
Wear ability ≤0.03 cm³
Fracture toughness (KIC) ≥3.2 Mpa/m²
Temperature resistant ≤ 750 ℃
Acid and alkali Ability PH 3~12

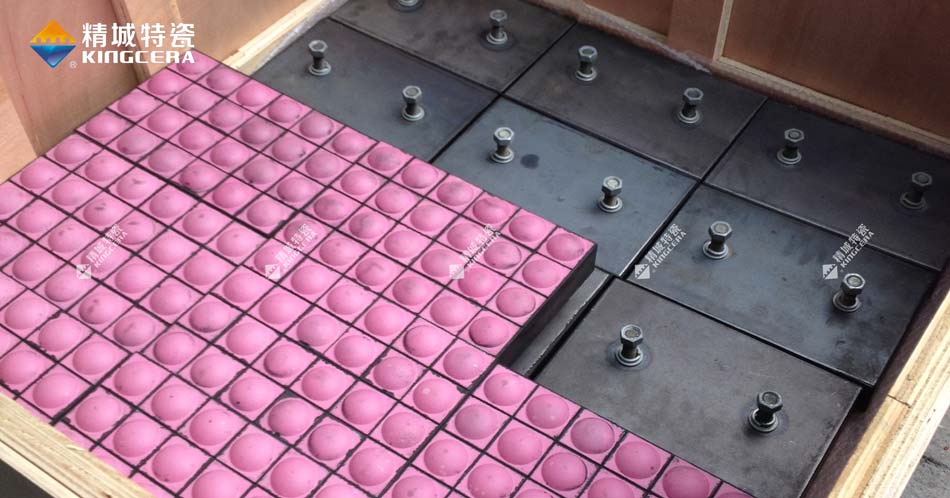

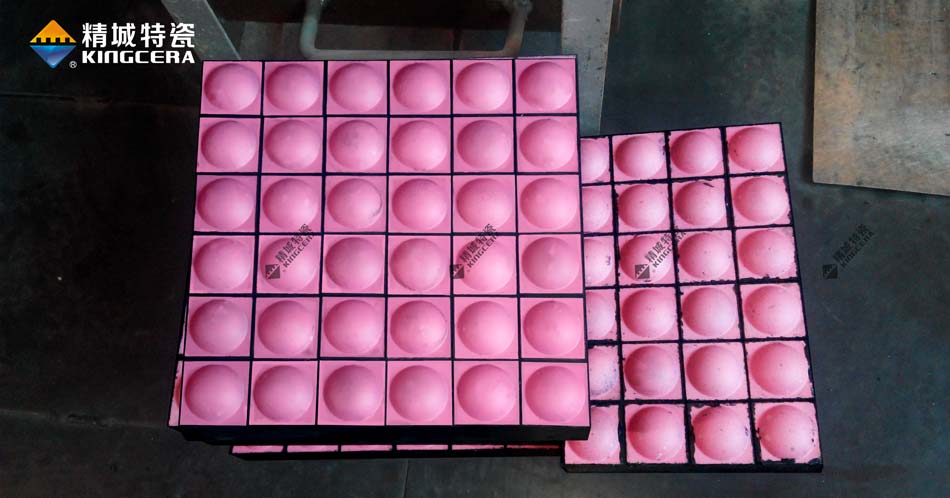

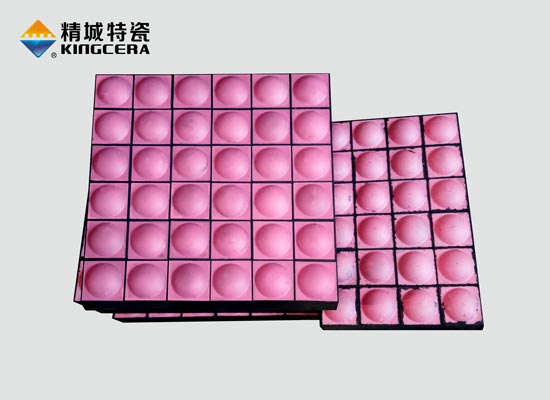

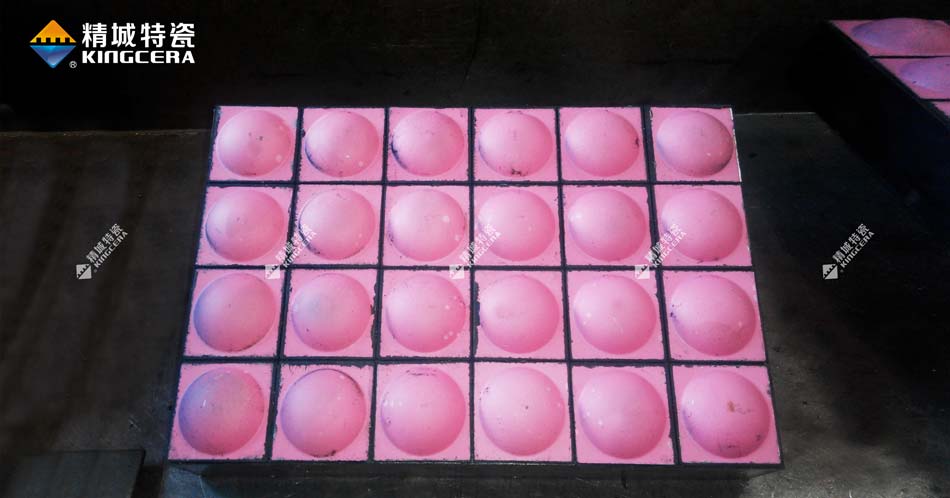

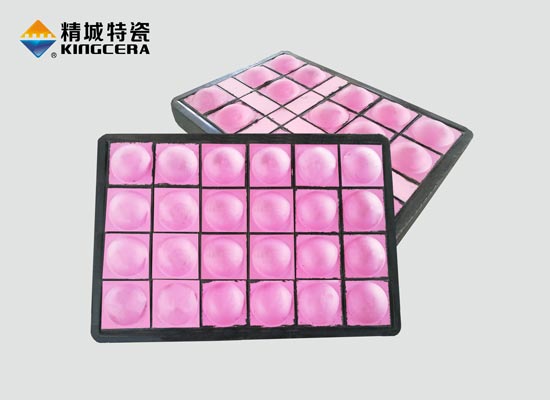

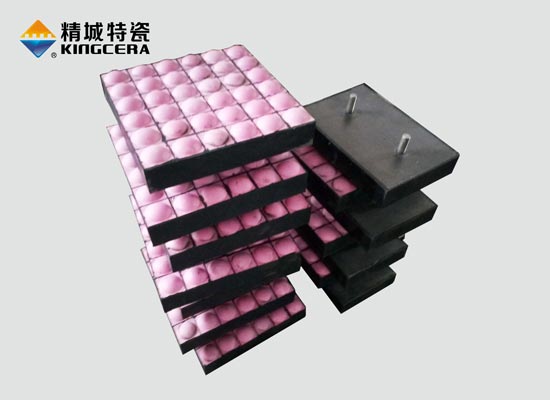

Product Exhibition
